36" x 24" Generator Slide Out, Tray Optional
36" x 24" Generator Slide Out, Tray Optional
The Generator Slide Out Kit is simple to install and has a weight capacity of 500 lbs. This kit makes repairs on your generator easier by keeping the generator closer to your height without having to remove it from the trailer. The slides also have locks to keep the generator from moving around during travel.
G36, 24”W x 4.5”H x 36”D (this has an extra week of production because the 36” slides are not in stock. If the tray is chosen, the slide and the tray are shipped separately to reduce damage during shipping, this does increase the shipping expenses). The bottom half base is 24” wide. The top half that slides is 22” wide.
Capacity 500lbs. (This is weight evenly applied across the entire length of the slides, if all 500lbs is placed on the very edge when fully extended, it may fail.)
Slide locks
Please list tray dimensions in the pop up form if chosen.
*The trailer openings lower lip clearance is 1”. The brackets have enough room to raise the slide another 1” by simply drilling new holes and mounting the slide higher on the lower base.
There are no holes drilled to bolt the tray and the slide out frame together. Some decide to weld, bolt, or rivet them together. We do not want to charge our customers for unnecessary hardware that may or may not be used. We have found that most customer decide to weld the tray to the slide frame.
Please allow 3-5 days of production time for fabrication once the slides arrive.

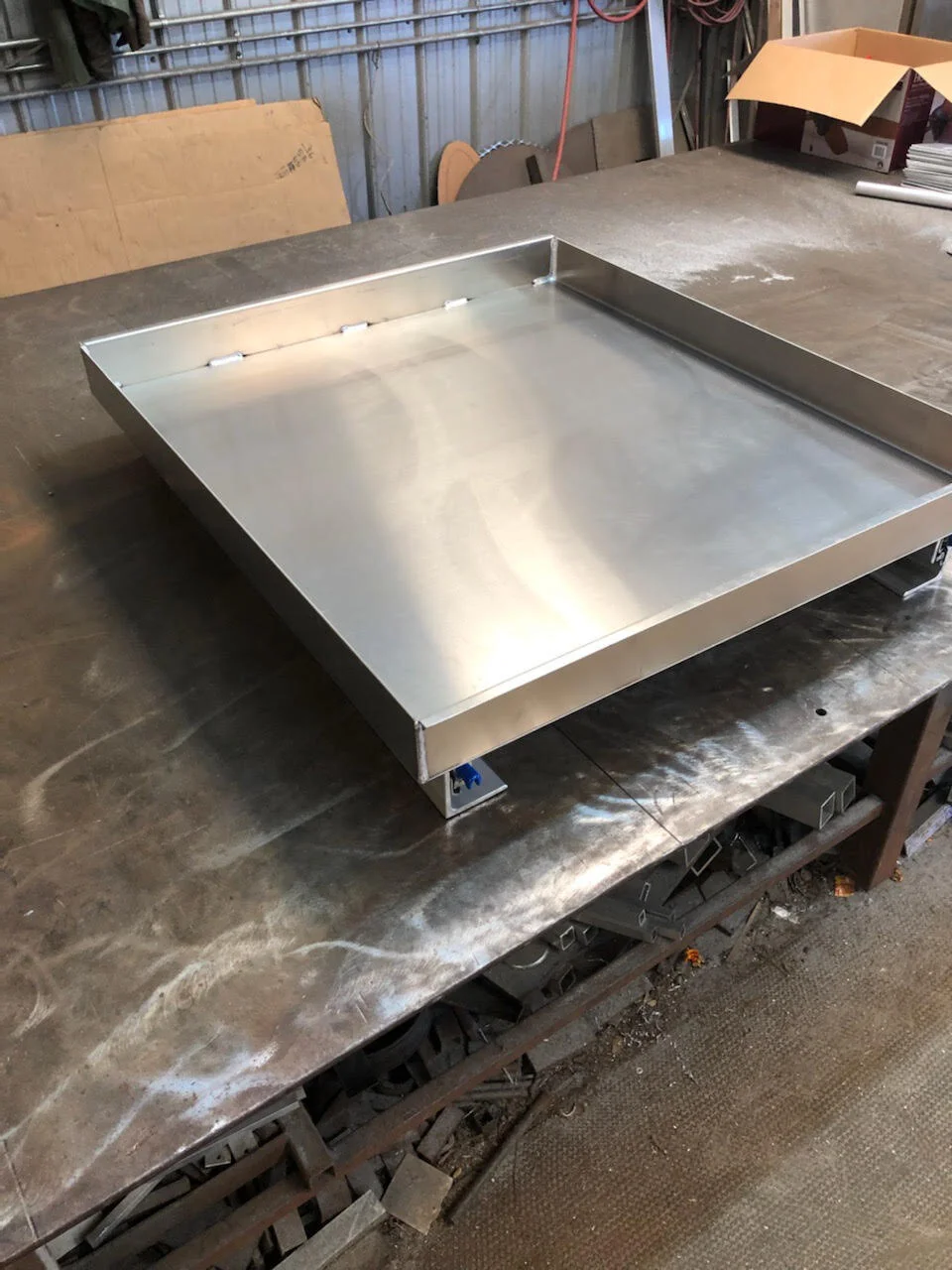

The 36” slide kit was a custom application with a tray to contain a generator that still has the wheels installed.
If you have an interest in applying this slide out kit to other aspects of your trailer or shop, it may need some custom modifications, please complete and submit the form below.
