Slide Out Trailer Step
Slide Out Trailer Step

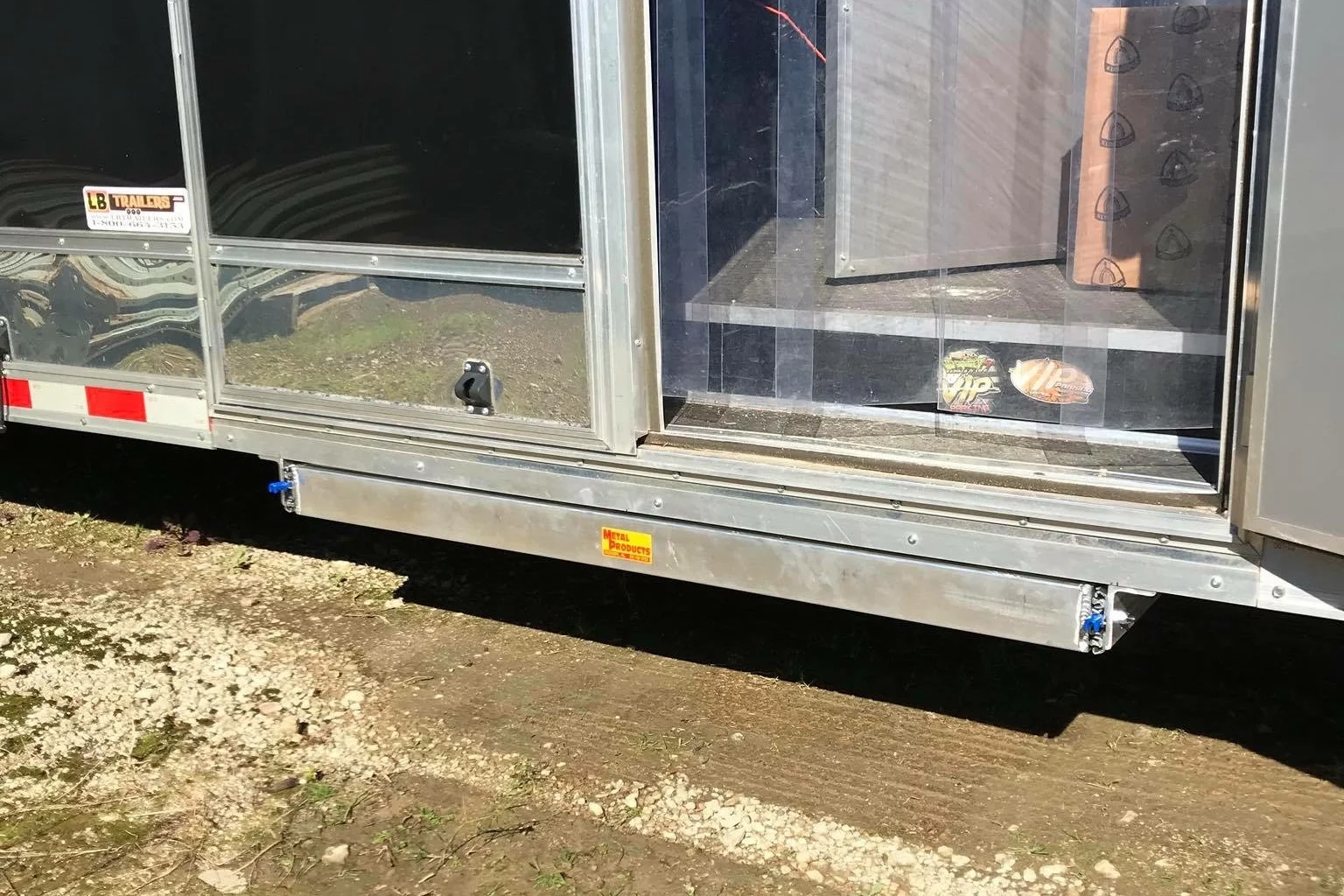

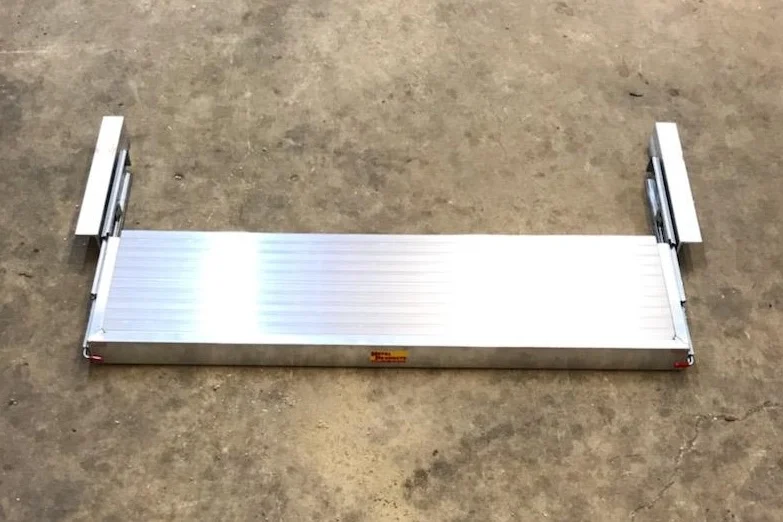

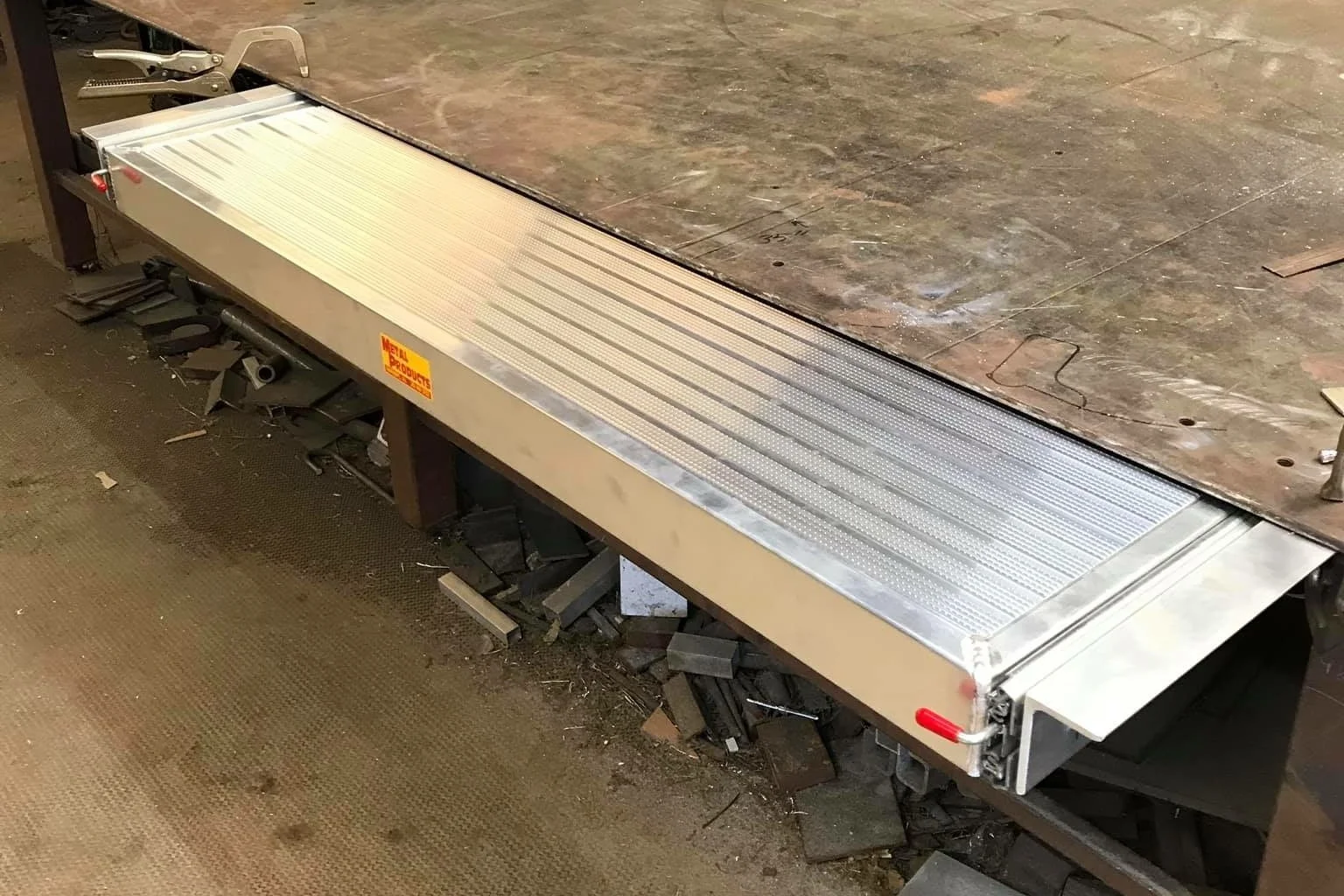

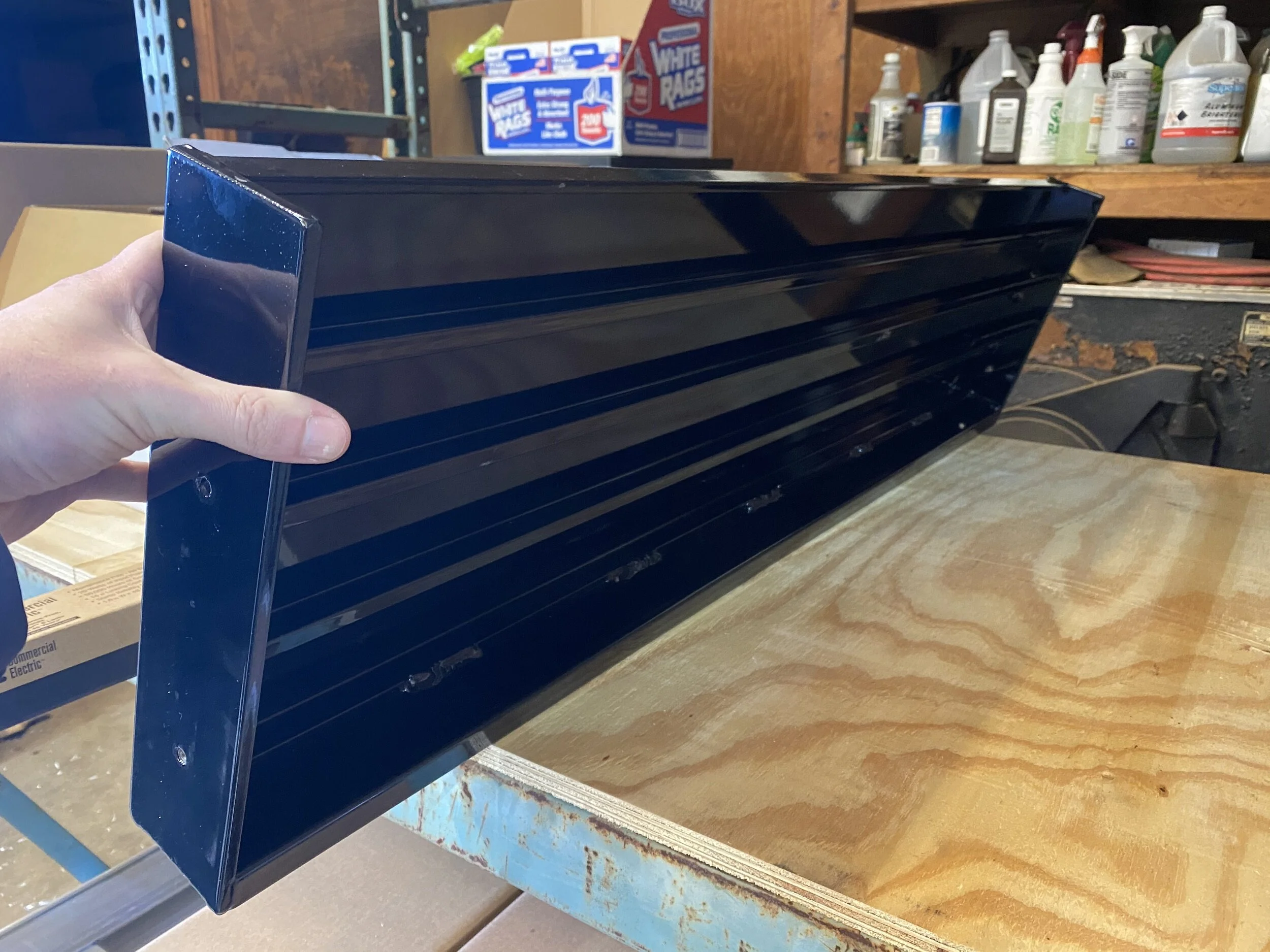

High quality aluminum slide-out trailer step with 500lb capacity slides. These also come in a black powdercoated option for an extra $50. The blue drawer lock release levers are the current design.
The S302, extra large, step is built with extra tubing on the backside for extra strength.
We do not have accurate pictures of the S303 / 24” step at the moment. The S303 has the same weight capacity as the 38” and 48” steps, only shorter. Unfortunately it has the same price as the 38” due to material waste when making such a small step. This is a custom option at the moment and not part of the standard production, but if we can get enough sales throughout the year, we will make this a standard option and offer single S303 / 24” steps at $20 cheaper than the 38” step. At this time, you can order a pair of S303 / 24” steps and get $40 OFF.
S300, 38”L x 12”D x 3”H (medium, 12” slides, 16” brackets)
S301, 48”L x 12”D x 3”H (large, 12” slides, 16” brackets)
S302, 48”L x 15”D x 3”H, (xlarge, 15” step, 16” slides, on 18” brackets for mounting under the trailer), 16” slides can take 2-3 weeks to obtain. We unable to order these in bulk at this time.
S303, 24”L x 12”D x 3”H (small, 12” slides, 16” brackets)
The slides lock in the closed position and the open position. You must operate the release lever to move it.
We have started shipping these disassembled to prevent the slide release levers from getting broken during shipping. We are working on providing instructions for assembly, but until that is done, you may see numbers labeled on the components for hole assignment. We will also be providing a download link for the instructions in the future.
Please allow 3-5 day production time on fabricated accessories.
Click here for the Slide Out Trailer Step Assembly Guide.
We do a lot of custom steps. If you are interested in some tweaking or a full custom design, please fill out the form below.
